Louvers

Lightweight aluminium louvers designed for effective ventilation, sun shading, and enhanced building aesthetics.

Louvers
Façade systems
10
Profiles in the range
0.26–2.18
Profile weights, kg/m
pp. 36–37
Product catalogue
/ 01 · Profile range

10 extruded profiles.

Section drawings from the Banco product catalogue. Dimensions in mm; weights in kg per metre.

ART 1008074 1.044 kg/m
Section drawing of profile ART 1008074, 1.044 kg/m

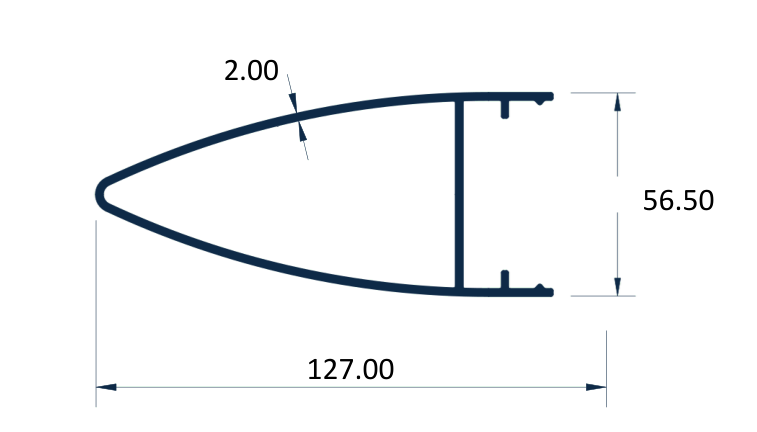

ART 2029159 1.763 kg/m
Section drawing of profile ART 2029159, 1.763 kg/m
ART 3029146 2.176 kg/m
Section drawing of profile ART 3029146, 2.176 kg/m
ART 2007823 0.921 kg/m
Section drawing of profile ART 2007823, 0.921 kg/m
ART 1029096 0.738 kg/m
Section drawing of profile ART 1029096, 0.738 kg/m
ART 2008013 0.697 kg/m
Section drawing of profile ART 2008013, 0.697 kg/m
ART 1029033 0.378 kg/m
Section drawing of profile ART 1029033, 0.378 kg/m
ART 1029147 0.745 kg/m
Section drawing of profile ART 1029147, 0.745 kg/m
ART 1007825 0.262 kg/m
Section drawing of profile ART 1007825, 0.262 kg/m
ART 2007709 0.850 kg/m
Section drawing of profile ART 2007709, 0.850 kg/m
← Previous 45 mm Curtain Wall All Façade systems
Architectural Series Product Catalogue
PDF · 42 pages · 81 MB · Louvers on pp. 36–37
View catalogue (PDF)
