25 mm Series

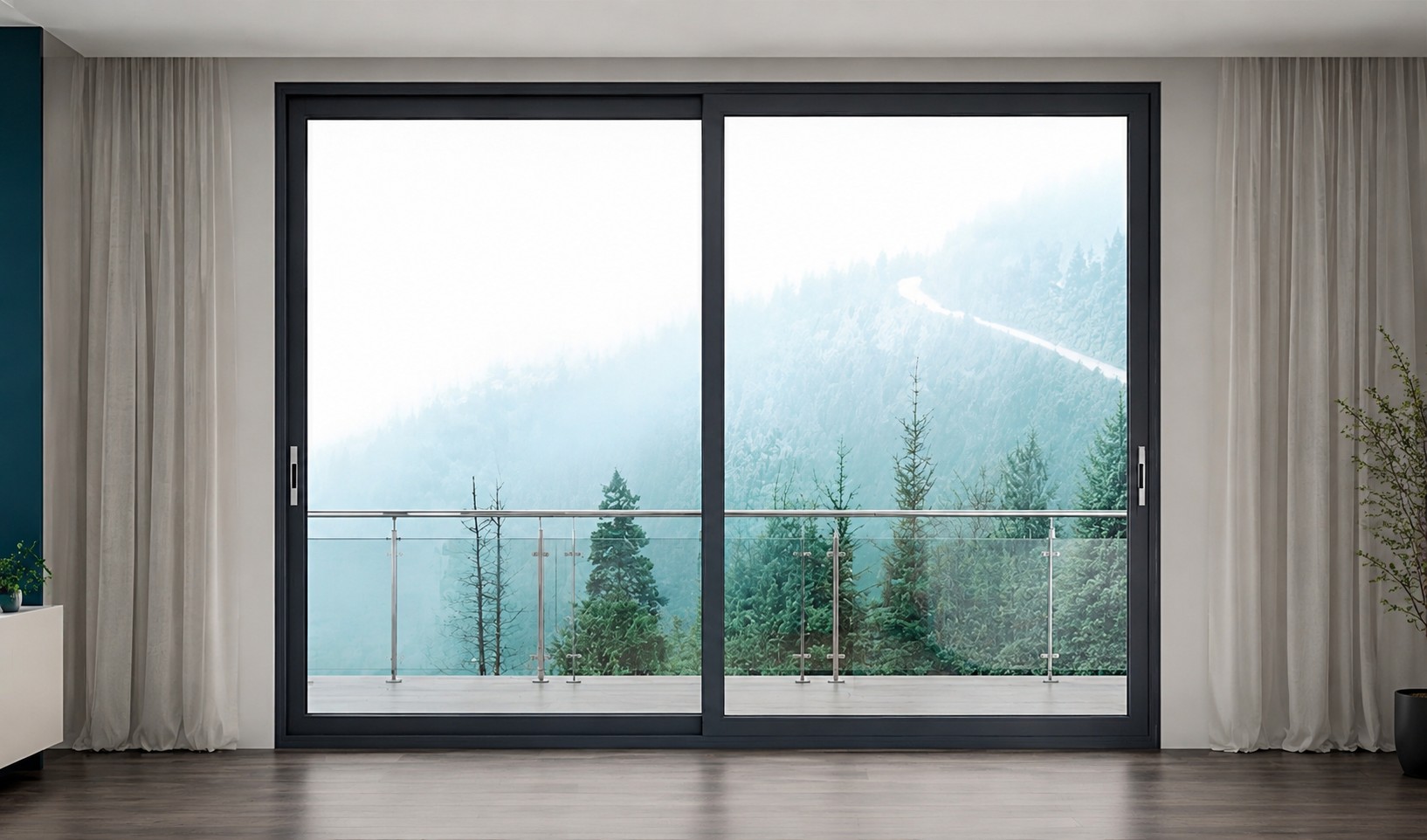

A high-end and slimline aluminium sliding series, compatible with single or double glazing and perfectly suited for bungalows and low-rise buildings.

25 mm
Profile series
7
Profiles in the range
0.12–1.49
Profile weights, kg/m
pp. 4–5
Product catalogue
/ 01 · Profile range

7 extruded profiles.

Section drawings from the Banco product catalogue. Dimensions in mm; weights in kg per metre.

ART 1029651 0.830 kg/m
Section drawing of profile ART 1029651, 0.830 kg/m
ART 1029652 0.396 kg/m
Section drawing of profile ART 1029652, 0.396 kg/m
ART 1029653 0.174 kg/m
Section drawing of profile ART 1029653, 0.174 kg/m
ART 1029654 0.873 kg/m
Section drawing of profile ART 1029654, 0.873 kg/m
ART 2029655 1.492 kg/m
Section drawing of profile ART 2029655, 1.492 kg/m
HAD 1034209 0.117 kg/m
Section drawing of profile HAD 1034209, 0.117 kg/m
ART 1029799 0.492 kg/m
Section drawing of profile ART 1029799, 0.492 kg/m
/ 02 · Bill of materials

Aluminium for a 1.2 m × 1.2 m window.

Profiles, quantities and weights for one reference window, as specified in the catalogue.

Standard configuration

This table is being re-checked against the profile drawings. Refer to page 5 of the product catalogue in the meantime.
