26 mm Premium Economic Series

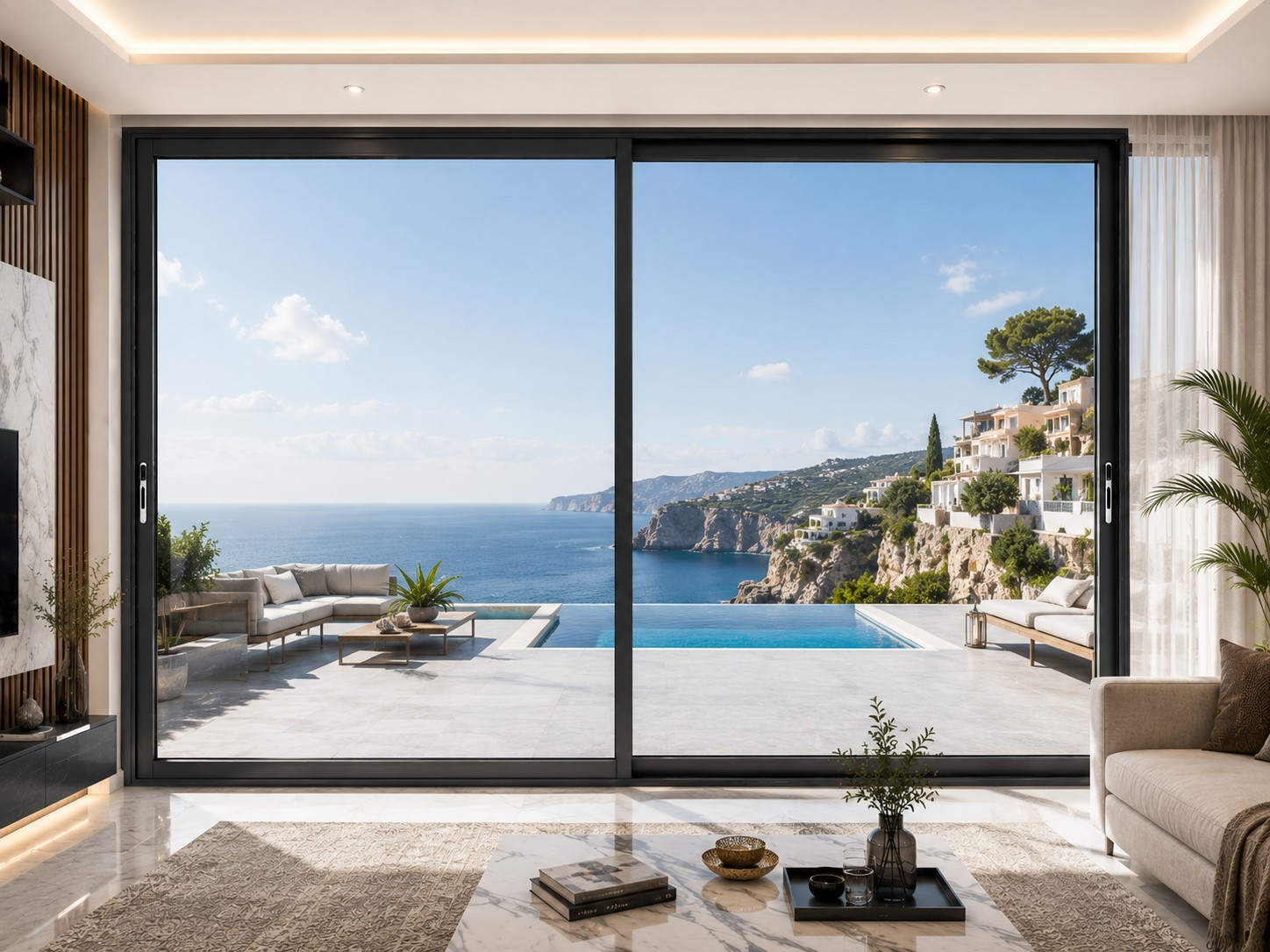

An economically designed premium series, ideal for modern residences and bungalows while offering a refined look and reliable performance.
26 mm
Profile series
7
Profiles in the range
11.06 kg
Aluminium · 1.2 m × 1.2 m window
pp. 6–7
Product catalogue
/ 01 · Profile range
7 extruded profiles.
Section drawings from the Banco product catalogue. Dimensions in mm; weights in kg per metre.
/ 02 · Bill of materials
Aluminium for a 1.2 m × 1.2 m window.
Profiles, quantities and weights for one reference window, as specified in the catalogue.
Standard configuration
| Profile | Section no. | kg/m | Weight (kg) | Qty | Net weight (kg) |
|---|---|---|---|---|---|
| Shutter | ART 1029843 | 0.765 | 0.918 | 6 | 5.508 |
| Interlock Clip | ART 1029844 | 0.450 | 0.540 | 2 | 1.080 |
| 2 Track | ART 1029846 | 0.849 | 1.019 | 4 | 4.076 |
| U Type Track Rail | ART 1029683 | 0.166 | 0.199 | 2 | 0.398 |
| Total | 11.062 | ||||
Architectural Series Product Catalogue
PDF · 42 pages · 81 MB · 26 mm Premium Economic Series on pp. 6–7
