27 mm Euro Series

Name: Banco 27 mm Euro Series
Brand: Banco Aluminium

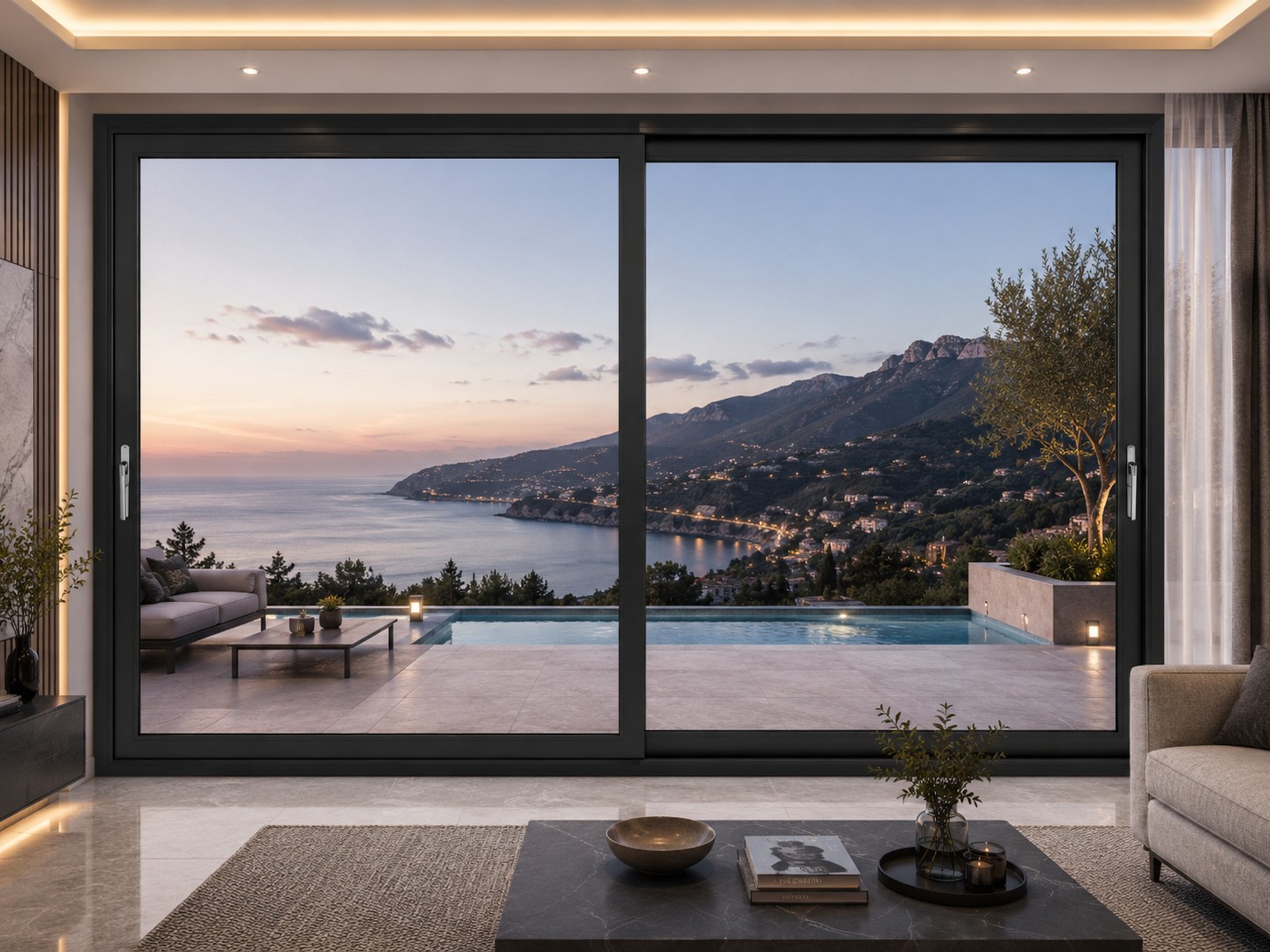

A high-quality aluminium sliding series, ideal for modern residential and commercial buildings, offering structural strength and sound insulation.

27 mm

Profile series

Profiles in the range

11.09 kg

Aluminium · 1.2 m × 1.2 m window

pp. 8–9

Product catalogue

/ 01 · Profile range

12 extruded profiles.

Section drawings from the Banco product catalogue. Dimensions in mm; weights in kg per metre.

ART 2029624 0.838 kg/m

ART 1029625 0.293 kg/m

ART 1029626 0.907 kg/m

ART 2029627 1.403 kg/m

ART 2029641 1.906 kg/m

ART 1029642 1.370 kg/m

RTU 1020397 0.195 kg/m

RET 1027054 0.433 kg/m

ART 1029746 0.677 kg/m

ART 1029747 0.725 kg/m

ART 1029748 1.133 kg/m

ART 1029908 0.339 kg/m

/ 02 · Bill of materials

Profiles, quantities and weights for one reference window, as specified in the catalogue.

Standard configuration

Profile	Section no.	kg/m	Weight (kg)	Qty	Net weight (kg)
Shutter	ART 2029624	0.838	1.006	6	6.036
Interlock Clip	ART 1029625	0.293	0.352	2	0.704
2 Track	ART 1029626	0.907	1.088	4	4.352
Total					11.092

Grill configuration

Profile	Section no.	kg/m	Weight (kg)	Qty	Net weight (kg)
Shutter	ART 2029624	0.838	1.006	6	6.036
Interlock Clip	ART 1029625	0.293	0.352	2	0.704
Grill Track	ART 1029642	1.370	1.644	4	6.576
Ret Pipe	RET 1027054	0.433	0.520	1	0.520
Round Pipe	RTU 1020397	0.195	0.234	10	2.340
Total					16.176

Architectural Series Product Catalogue

PDF · 42 pages · 81 MB · 27 mm Euro Series on pp. 8–9
