29 mm Series

Name: Banco 29 mm Series
Brand: Banco Aluminium

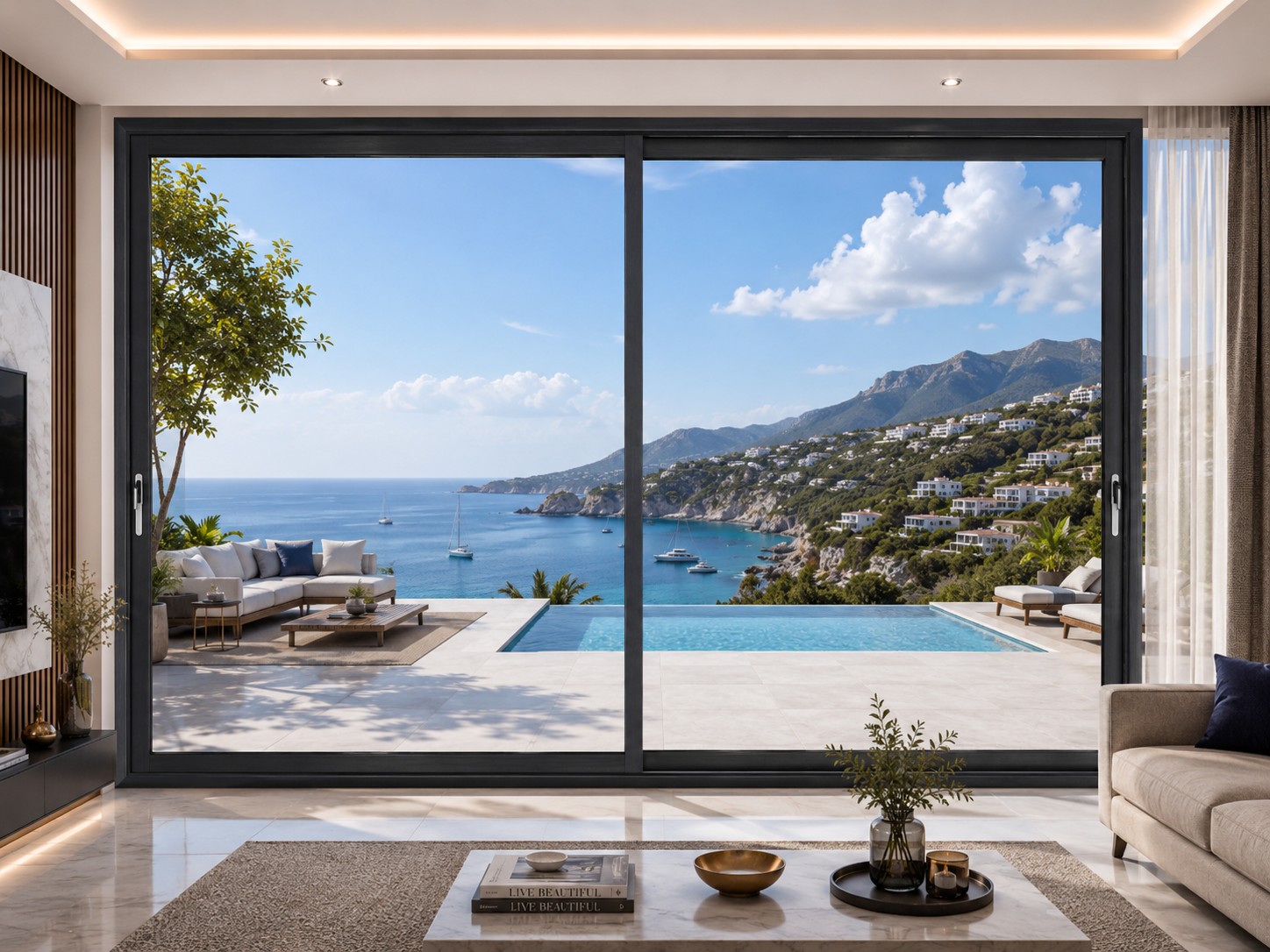

A high-performance aluminium sliding system for modern residential and commercial spaces, offering durable, weather-resistant solutions.

29 mm

Profile series

Profiles in the range

13.51 kg

Aluminium · 1.2 m × 1.2 m window

pp. 12–13

Product catalogue

/ 01 · Profile range

26 extruded profiles.

Section drawings from the Banco product catalogue. Dimensions in mm; weights in kg per metre.

ART 1029634 0.974 kg/m

ART 2029635 0.851 kg/m

ART 1029650 0.339 kg/m

ART 1029649 0.978 kg/m

ART 1029662 0.629 kg/m

HAD 1034209 0.117 kg/m

ART 1029864 0.826 kg/m

ART 2029640 1.650 kg/m

ART 1029638 1.097 kg/m

ART 2029639 1.697 kg/m

ART 1029841 1.470 kg/m

ART 1029812 1.192 kg/m

ART 2029813 1.772 kg/m

ART 2029916 1.407 kg/m

ART 1029637 0.175 kg/m

ART 1029661 0.366 kg/m

ART 1029648 0.542 kg/m

ART 1029842 0.427 kg/m

ART 1029840 0.104 kg/m

ART 1029683 0.166 kg/m

ART 2029917 1.974 kg/m

RTU 1020397 0.195 kg/m

ART 1029423 0.309 kg/m

ART 1029798 0.108 kg/m

ART 1029918 0.915 kg/m

ART 2029919 1.223 kg/m

/ 02 · Bill of materials

Aluminium for a 1.2 m × 1.2 m window.

Profiles, quantities and weights for one reference window, as specified in the catalogue.

Standard configuration

Profile	Section no.	kg/m	Weight (kg)	Qty	Net weight (kg)
Shutter	ART 1029634	0.974	1.169	6	7.014
Interlock Clip	ART 1029650	0.339	0.407	2	0.814
2 Track	ART 1029638	1.097	1.316	4	5.264
Cap	ART 1029637	0.175	0.210	2	0.420
Total					13.512

Slim-interlock configuration

Profile	Section no.	kg/m	Weight (kg)	Qty	Net weight (kg)
Shutter	ART 1029634	0.974	1.169	4	4.676
Slim Interlock	ART 1029648	0.542	0.650	1	0.650
2 Track	ART 1029638	1.097	1.316	4	5.264
Reinforce Interlock	ART 1029649	0.978	1.174	1	1.174
Cap	ART 1029637	0.175	0.210	2	0.420
Total					12.184
