35 mm Gulf Series

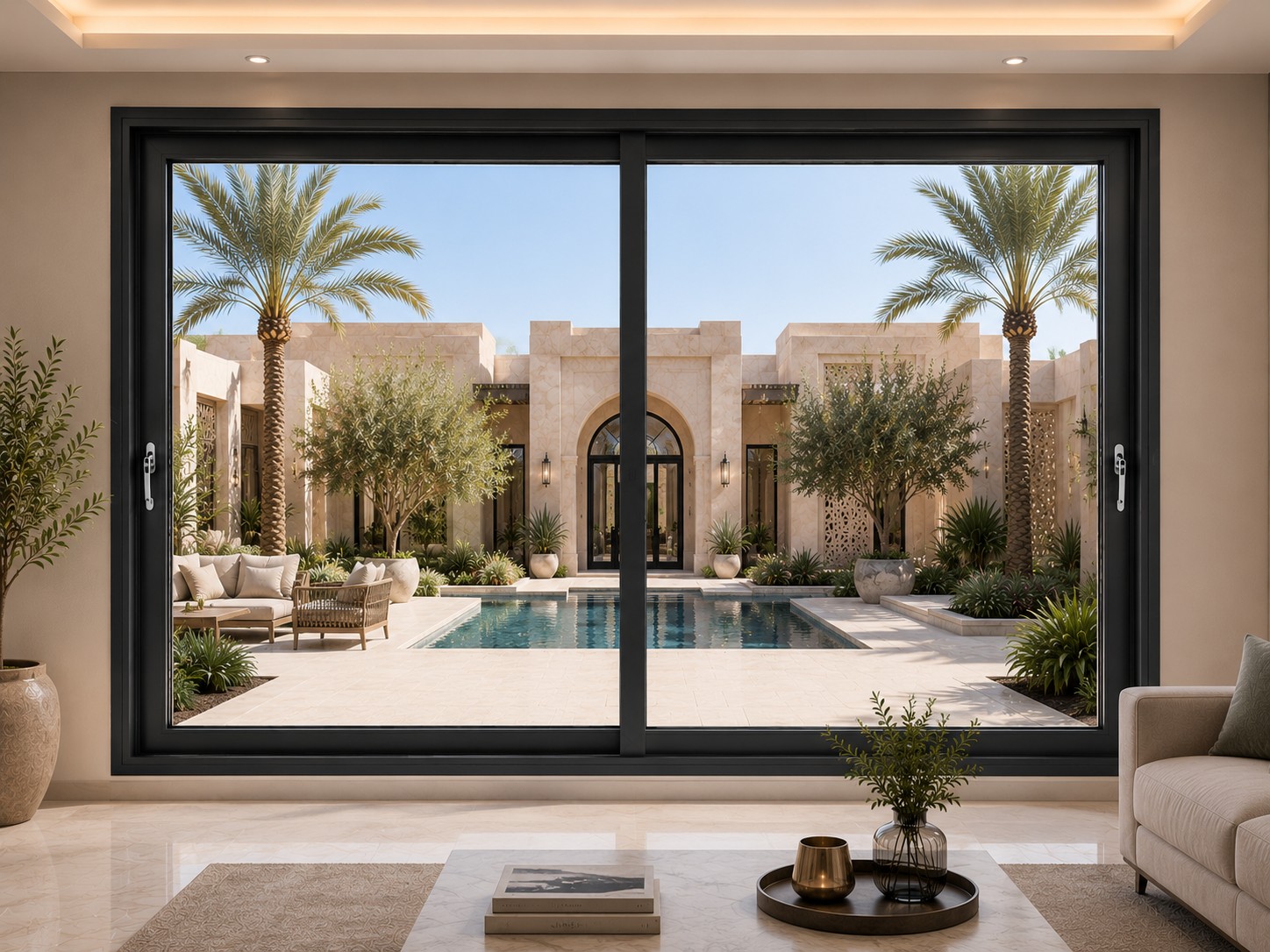

A heavy-duty, sleek aluminium sliding system for residential and commercial spaces, offering strength and durability.

35 mm
Profile series
14
Profiles in the range
0.11–2.49
Profile weights, kg/m
pp. 16–17
Product catalogue
/ 01 · Profile range

14 extruded profiles.

Section drawings from the Banco product catalogue. Dimensions in mm; weights in kg per metre.

ART 1029677 0.970 kg/m
Section drawing of profile ART 1029677, 0.970 kg/m
ART 2029675 0.683 kg/m
Section drawing of profile ART 2029675, 0.683 kg/m
ART 1029676 0.644 kg/m
Section drawing of profile ART 1029676, 0.644 kg/m
ART 1029678 1.247 kg/m
Section drawing of profile ART 1029678, 1.247 kg/m
ART 1029680 1.039 kg/m
Section drawing of profile ART 1029680, 1.039 kg/m
ART 1029679 1.201 kg/m
Section drawing of profile ART 1029679, 1.201 kg/m
ART 2029681 1.779 kg/m
Section drawing of profile ART 2029681, 1.779 kg/m
ART 1029682 0.234 kg/m
Section drawing of profile ART 1029682, 0.234 kg/m
ART 1029683 0.166 kg/m
Section drawing of profile ART 1029683, 0.166 kg/m
ART 2029711 0.776 kg/m
Section drawing of profile ART 2029711, 0.776 kg/m
ART 1029798 0.108 kg/m
Section drawing of profile ART 1029798, 0.108 kg/m
ART 1029796 0.195 kg/m
Section drawing of profile ART 1029796, 0.195 kg/m
ART 1029712 1.522 kg/m
Section drawing of profile ART 1029712, 1.522 kg/m
ART 3029713 2.492 kg/m
Section drawing of profile ART 3029713, 2.492 kg/m
/ 02 · Bill of materials

Aluminium for a 1.2 m × 1.2 m window.

Profiles, quantities and weights for one reference window, as specified in the catalogue.

Standard configuration

This table is being re-checked against the profile drawings. Refer to page 17 of the product catalogue in the meantime.
