35 × 75 mm Euro Series

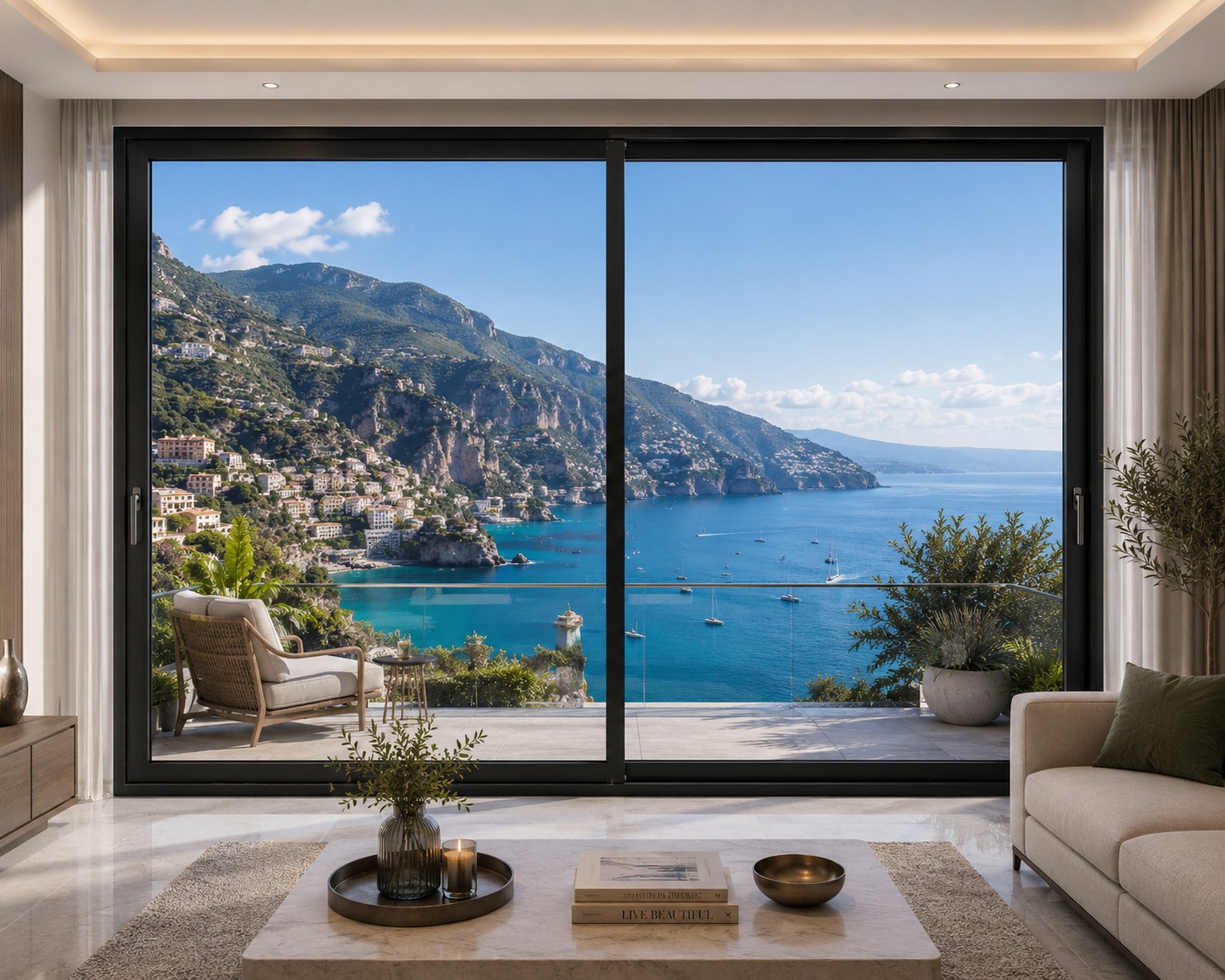

A premium, heavy-duty aluminium sliding system for high-end residential and commercial projects, offering strength and refined aesthetics.
35 × 75 mm
Profile series
10
Profiles in the range
17.87 kg
Aluminium · 1.2 m × 1.2 m window
pp. 18–19
Product catalogue
/ 01 · Profile range
10 extruded profiles.

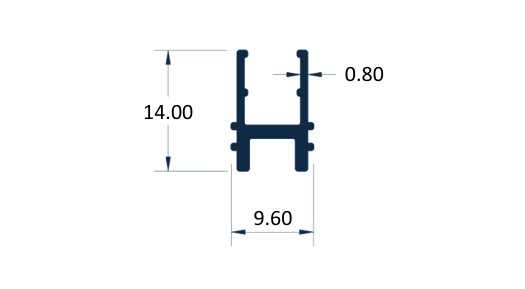

Section drawings from the Banco product catalogue. Dimensions in mm; weights in kg per metre.
/ 02 · Bill of materials
Aluminium for a 1.2 m × 1.2 m window.
Profiles, quantities and weights for one reference window, as specified in the catalogue.
Standard configuration
| Profile | Section no. | kg/m | Weight (kg) | Qty | Net weight (kg) |
|---|---|---|---|---|---|
| Shutter | ART 1029804 | 1.202 | 1.442 | 6 | 8.652 |
| Slim Interlock | ART 1029808 | 0.694 | 0.833 | 1 | 0.833 |
| Reinforcement | ART 1029806 | 1.179 | 1.415 | 1 | 1.415 |
| 2 Track | ART 1029810 | 1.368 | 1.642 | 4 | 6.568 |
| U Type Track Rail | ART 1029683 | 0.166 | 0.199 | 2 | 0.398 |
| Total | 17.866 | ||||
Architectural Series Product Catalogue
PDF · 42 pages · 81 MB · 35 × 75 mm Euro Series on pp. 18–19
