Standard profiles.
Ready to specify.
Our extensive range of standard aluminium sections is engineered to meet the diverse needs of structural and architectural industries. Comprising versatile profile types and manufactured to IS 733 and IS 1285 standards.
Banco maintains ready stock in 6 series alloys with mill finish. Value-added surface treatments, including anodizing and powder coating, are available upon request, delivering enhanced durability and aesthetics.
Certified
Standard section
types in stock.
Bars

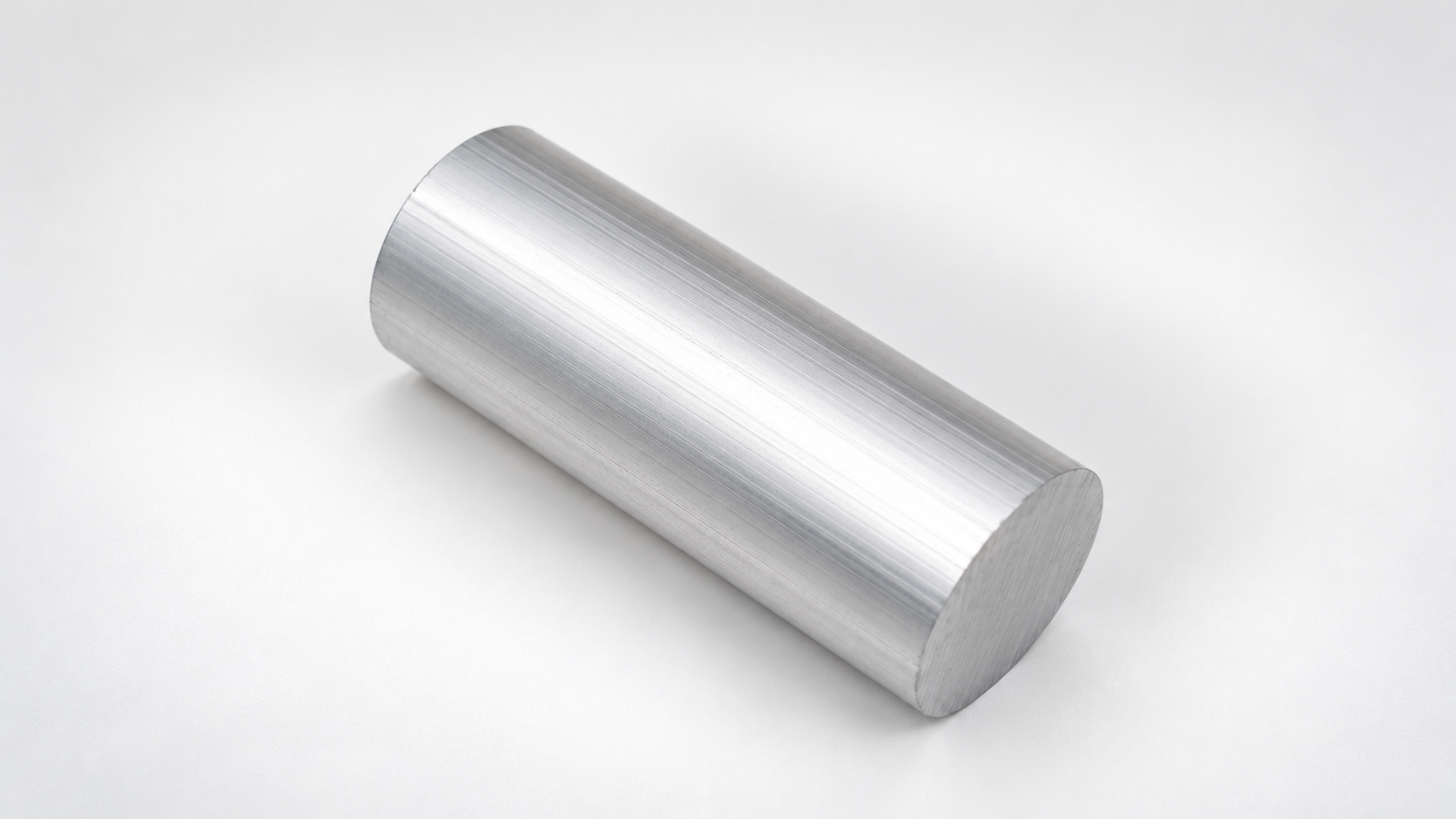

IS 733Round
6–150 mm diameter. Extruded and cold drawn grades available.
Square
10×10 to 80×80 mm. Structural and machining stock.
Hexagonal
6–50 mm across flats. Fastener stock, machining blanks, and hex-drive components.

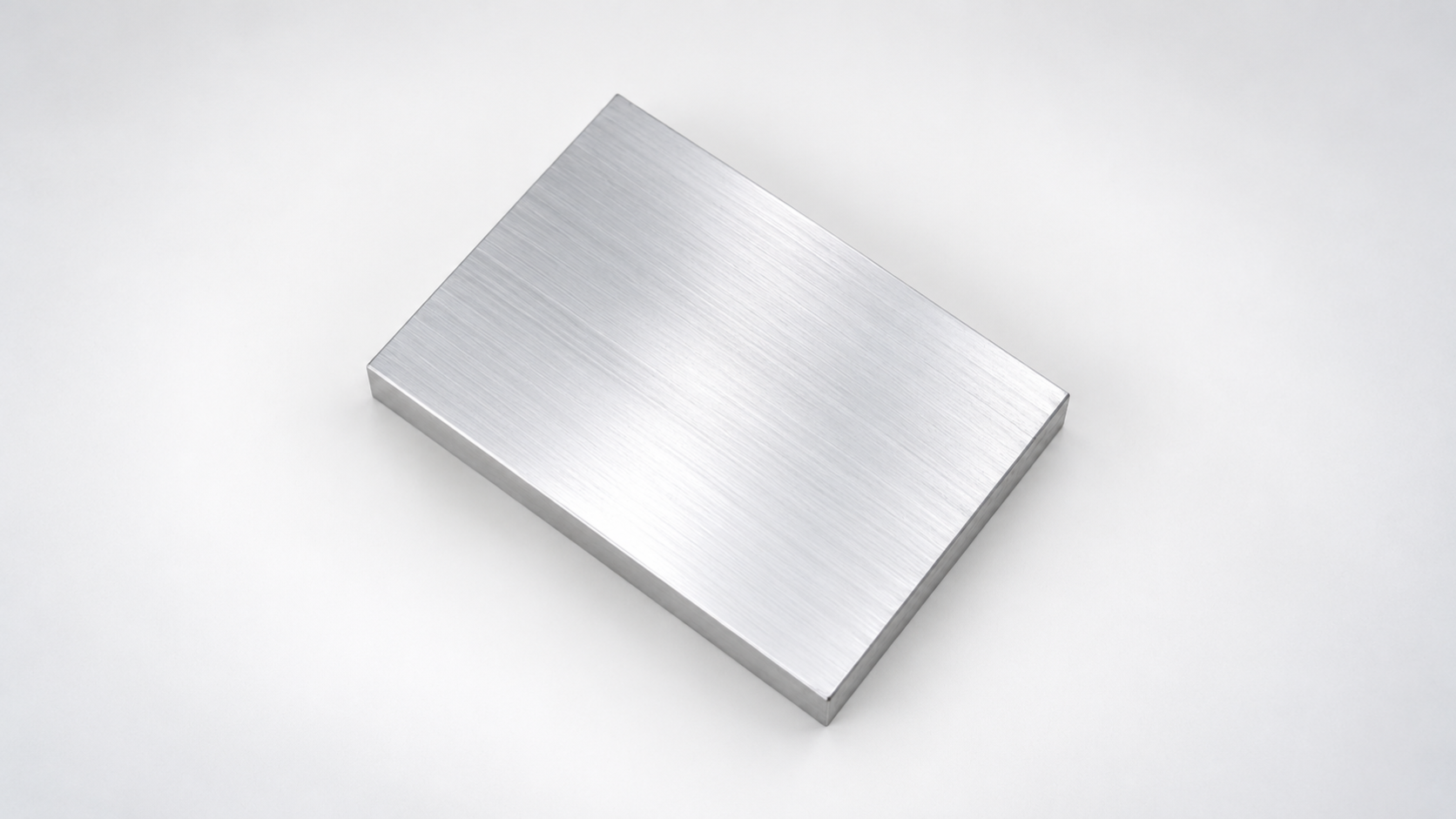

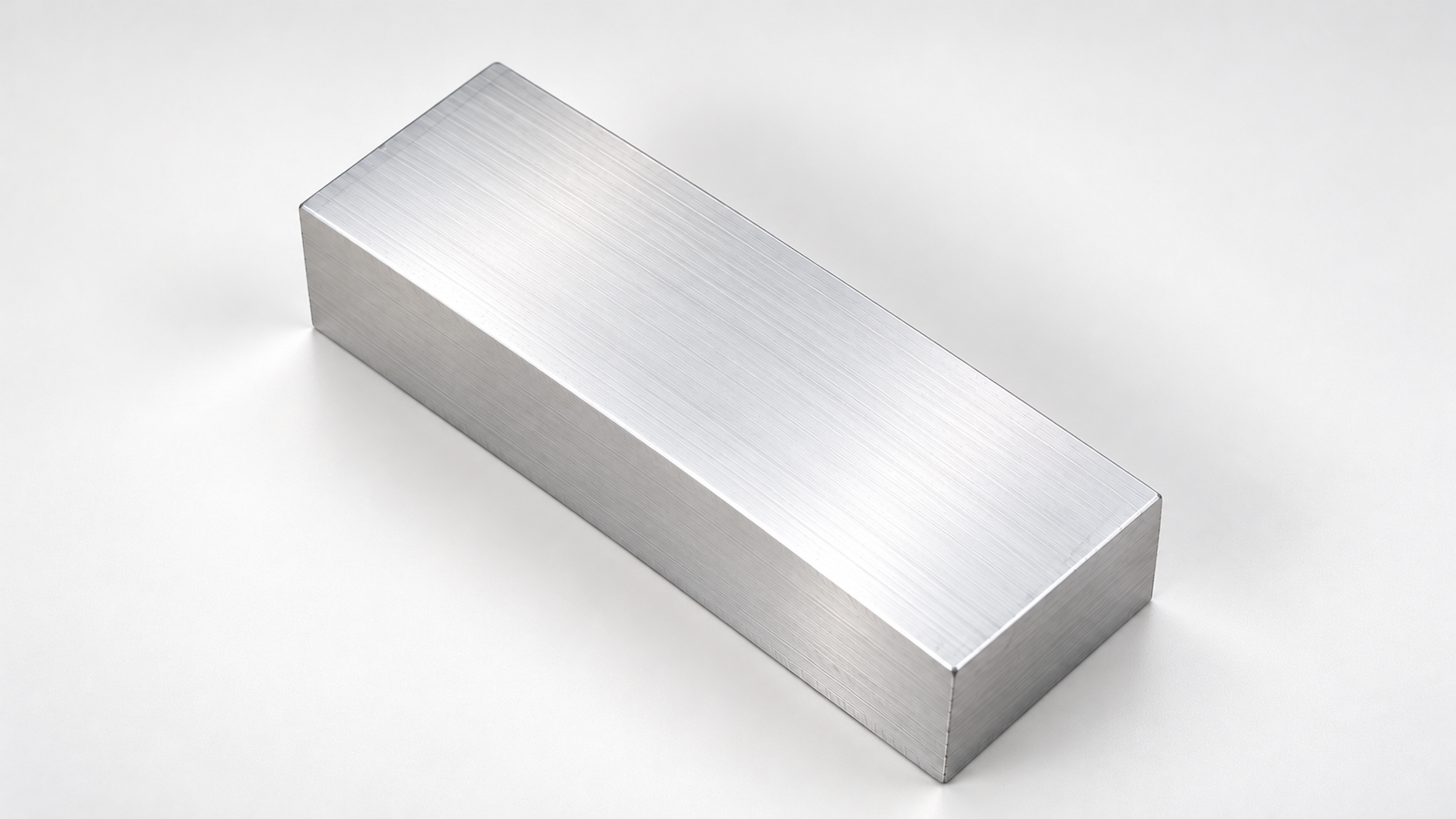

Flat
10–200 mm wide, 2–20 mm thick. Plate strip, fabrication flat.
Tubes

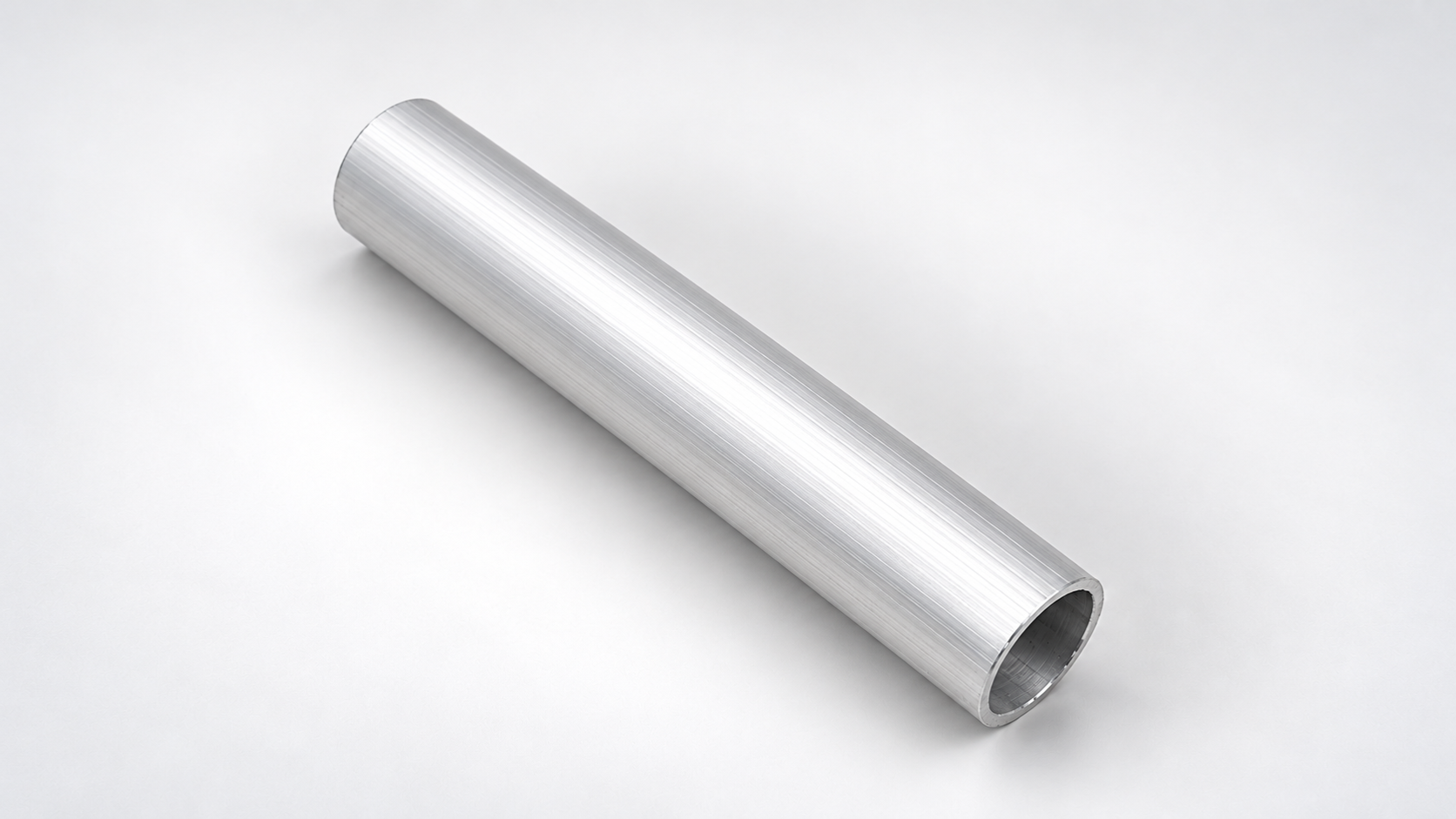

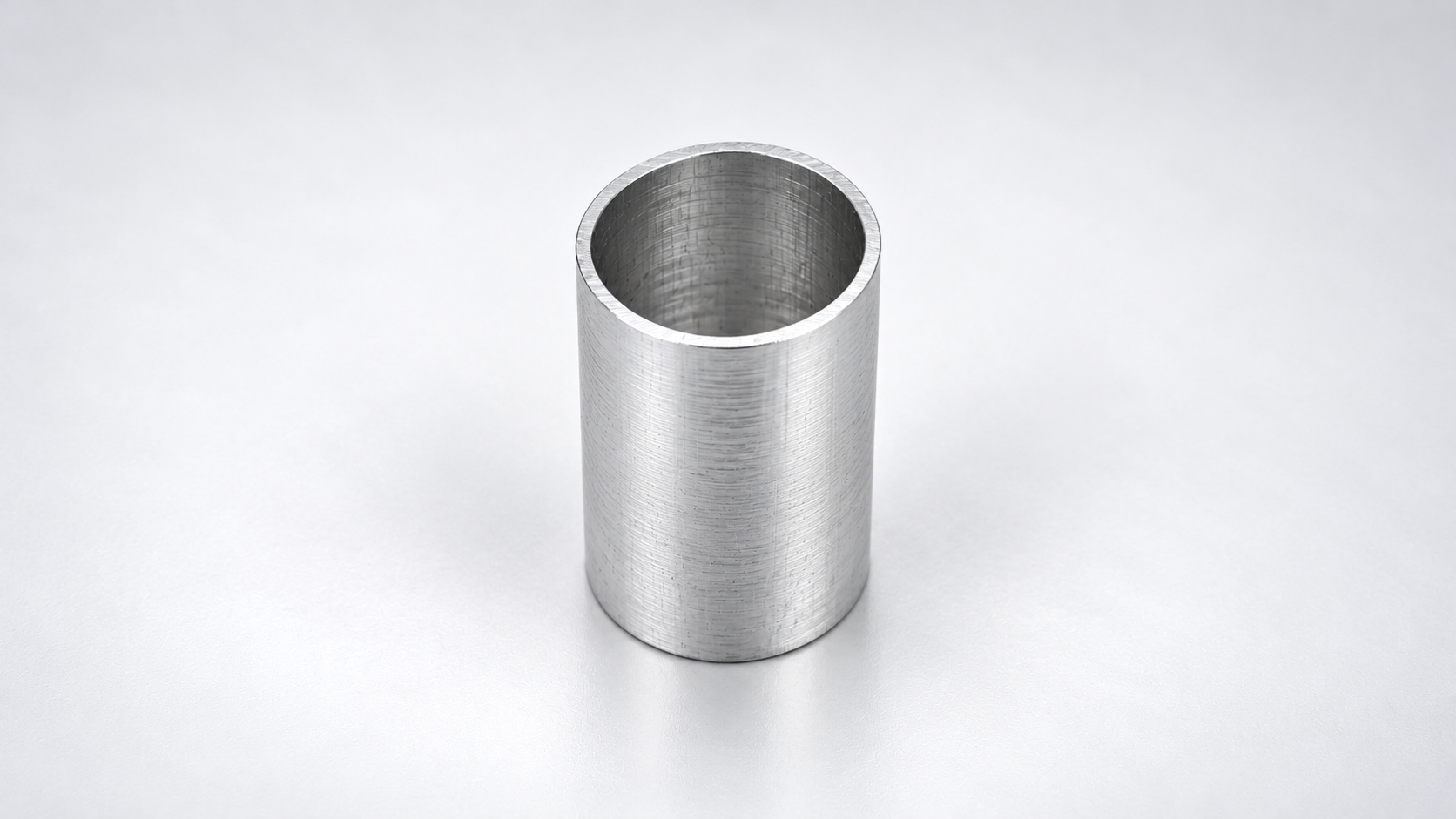

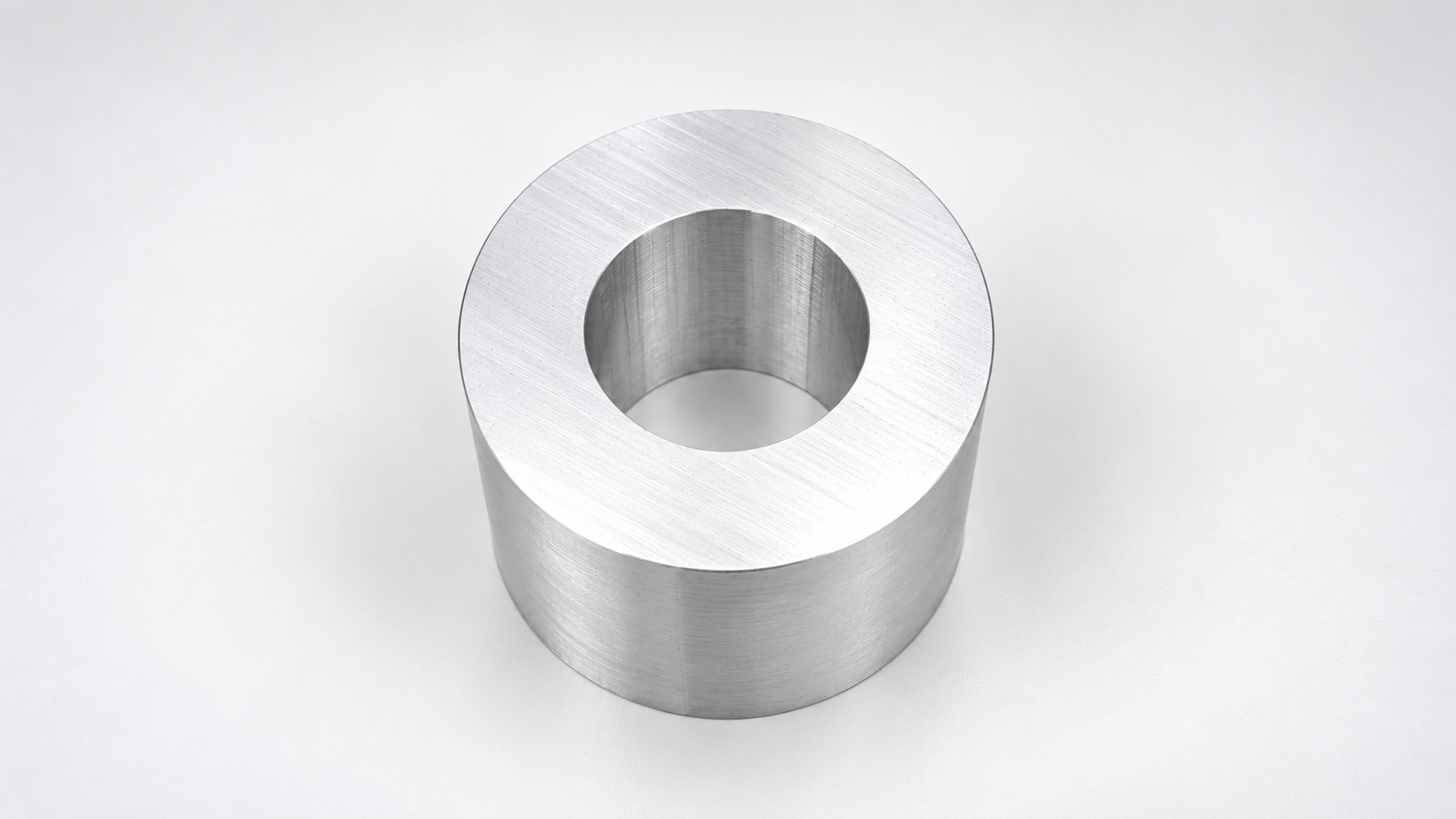

IS 1285Round
12–200 mm OD. Structural, mechanical, and architectural tube.

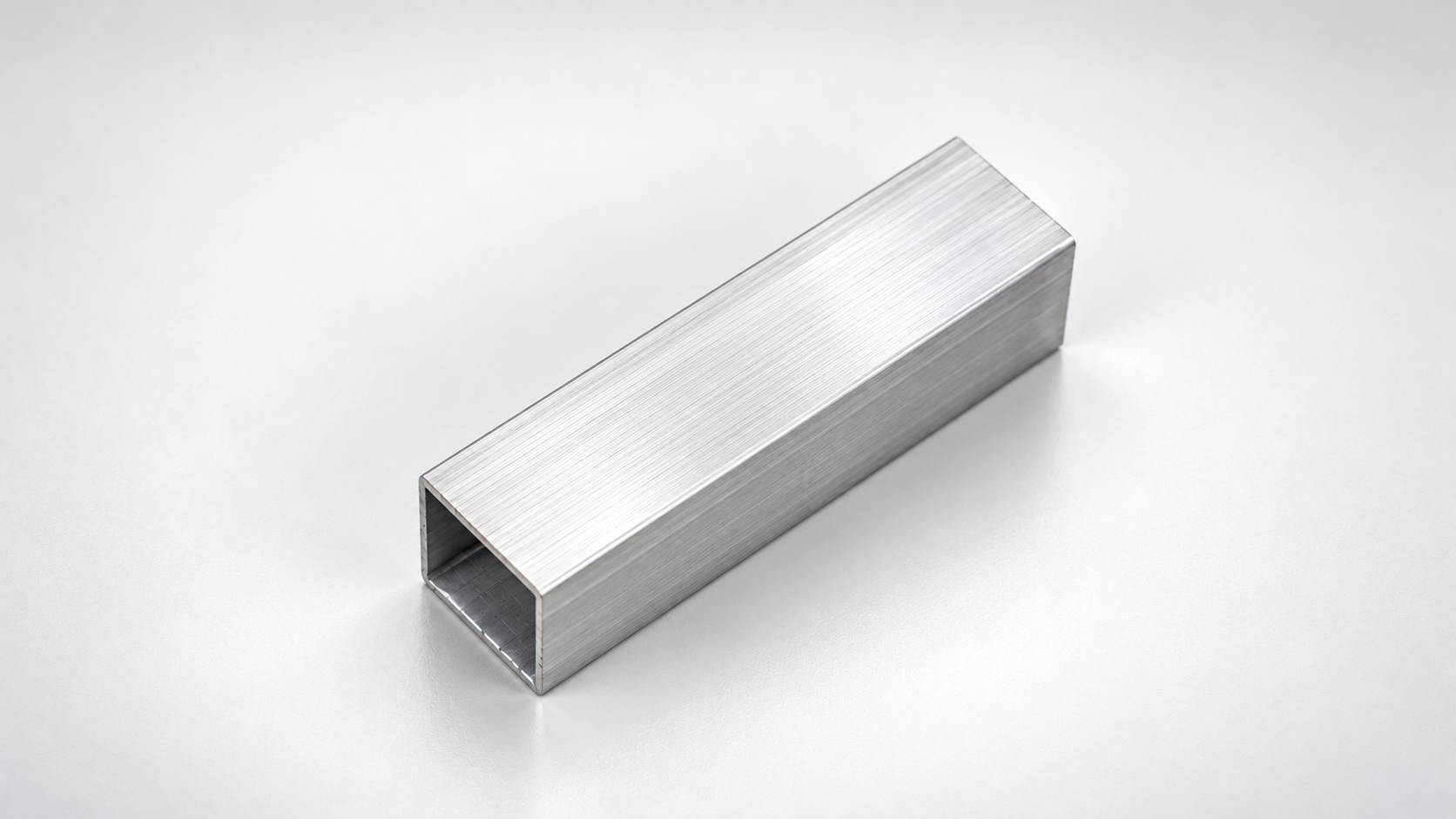

Square
10×10 to 100×100 mm. Structural and mechanical tube for frames and fabrication.

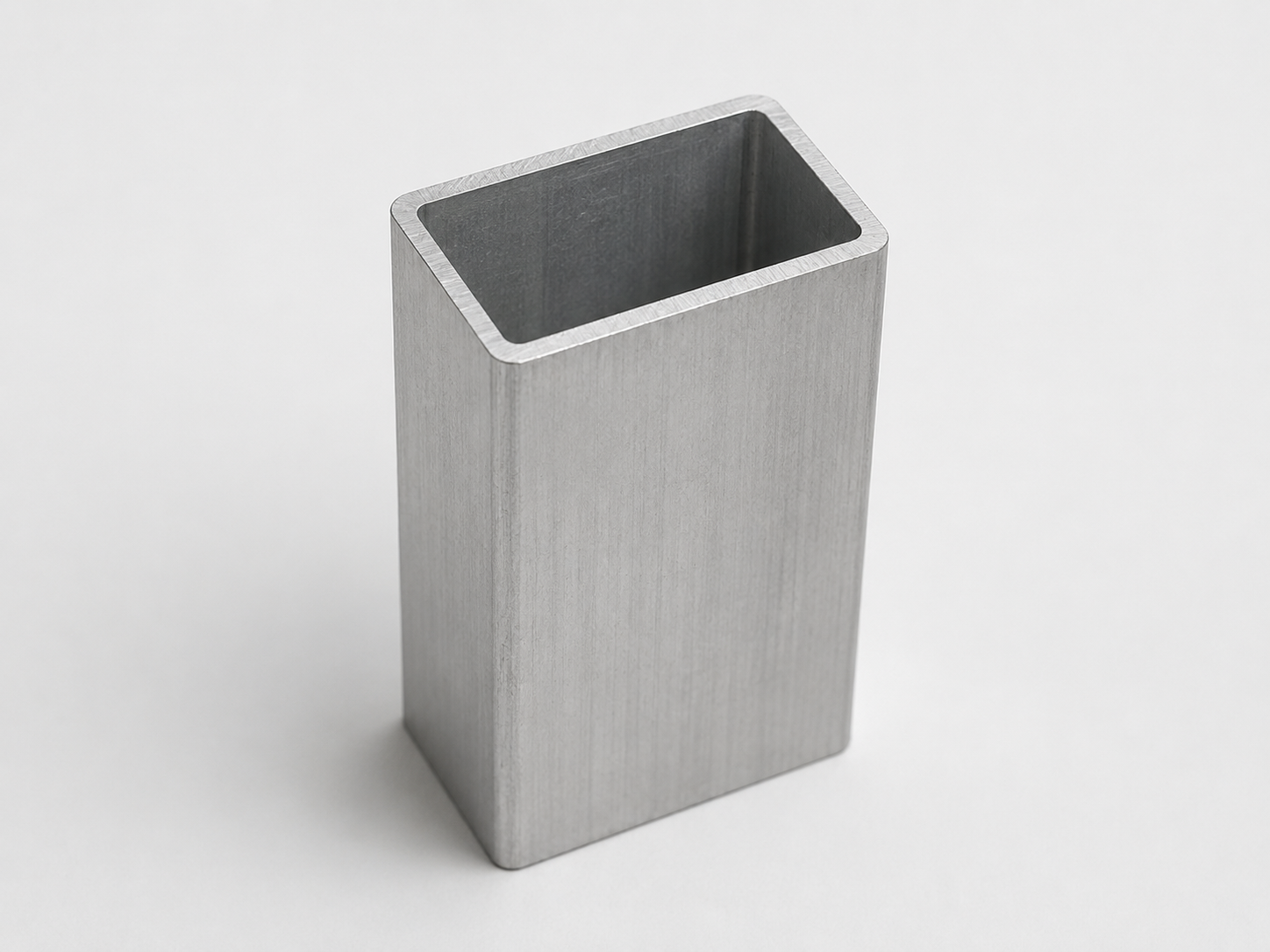

Rectangular
RHS for structural frames, guard rails, and support structures.

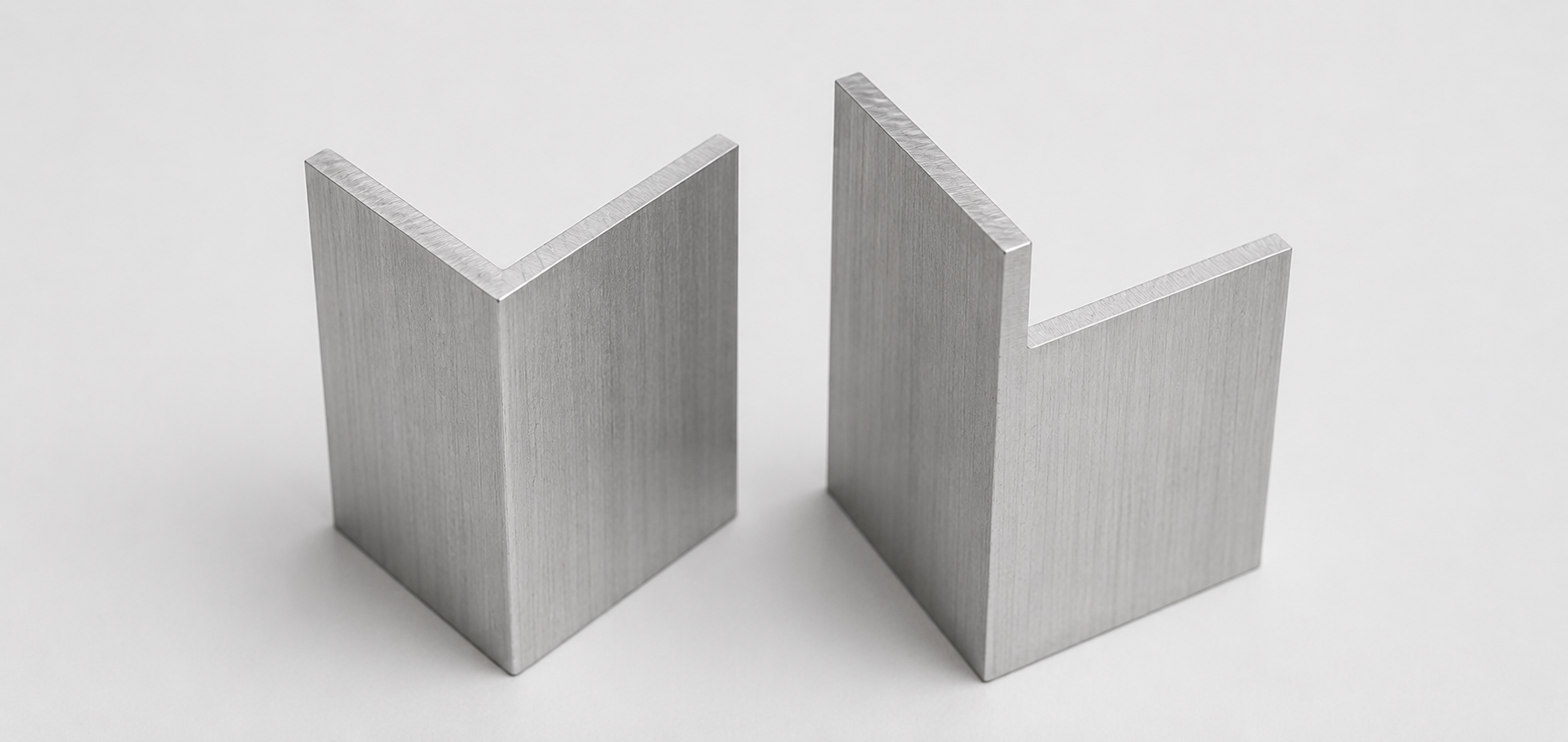

Angles
IS 1285Equal
Equal legs, 20×20 to 100×100 mm. Structural and fabrication use.
Unequal
Unequal legs for specific structural configurations.

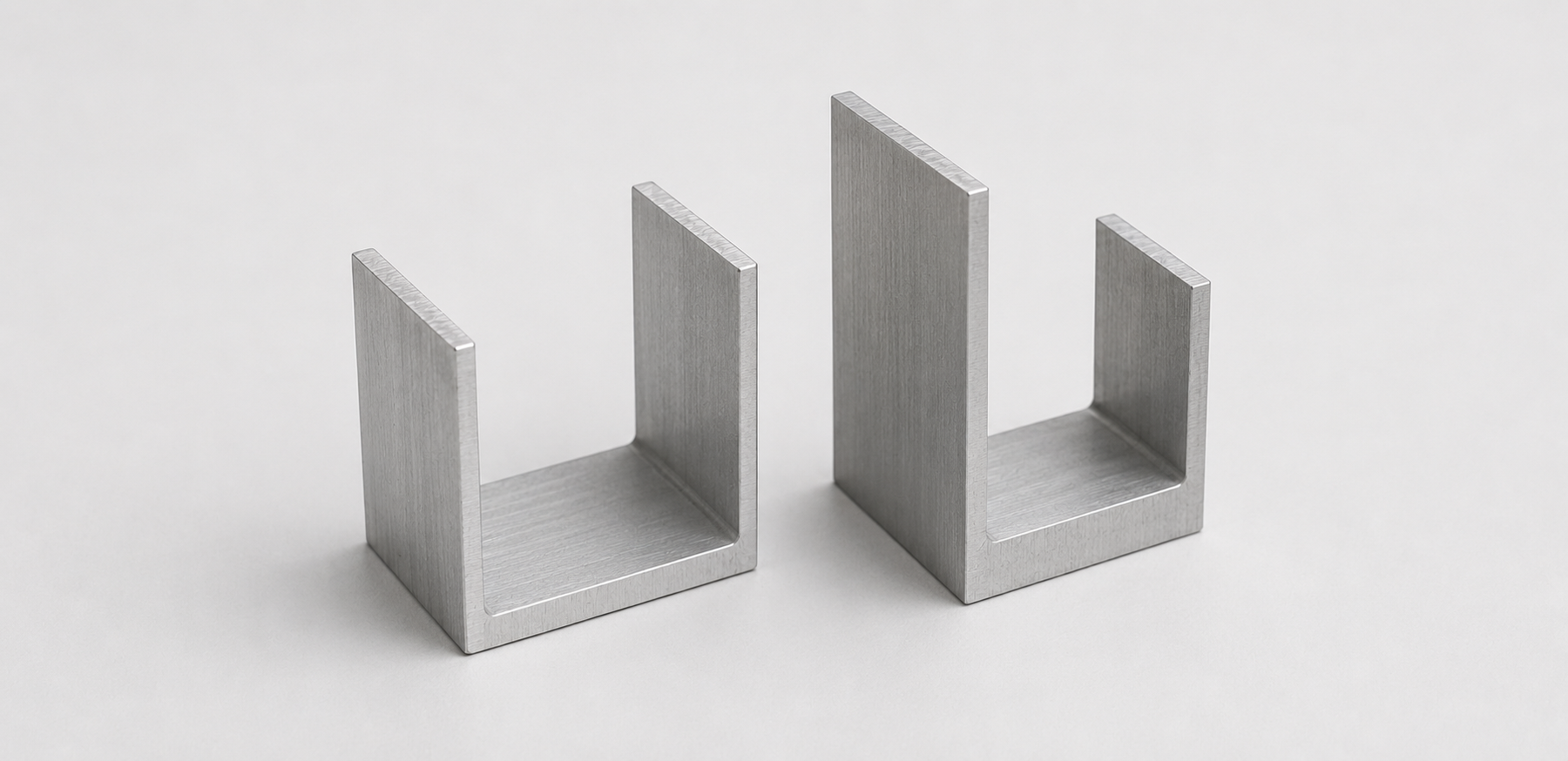

Channels
IS 1285Equal
C-section channel, standard and heavy duty. Wide flange versions.
Unequal
Unequal flange channel for asymmetric structural and fabrication use.

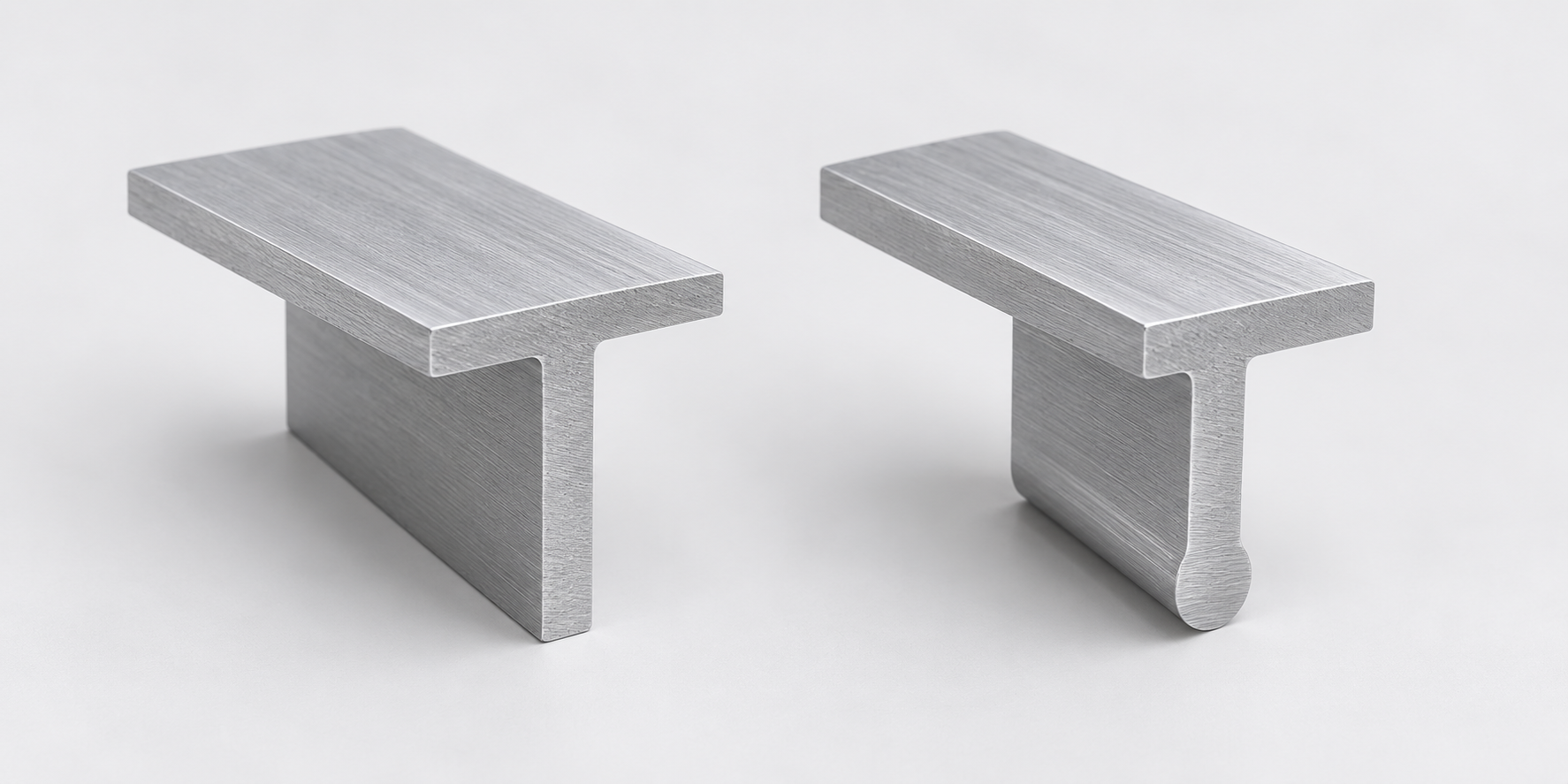

Tees
IS 1285Regular
Equal and unequal T-sections. Track, extrusion guide, structural T.
Bulb
Tee with a rolled bulb edge for stiffened panel and marine deck use.

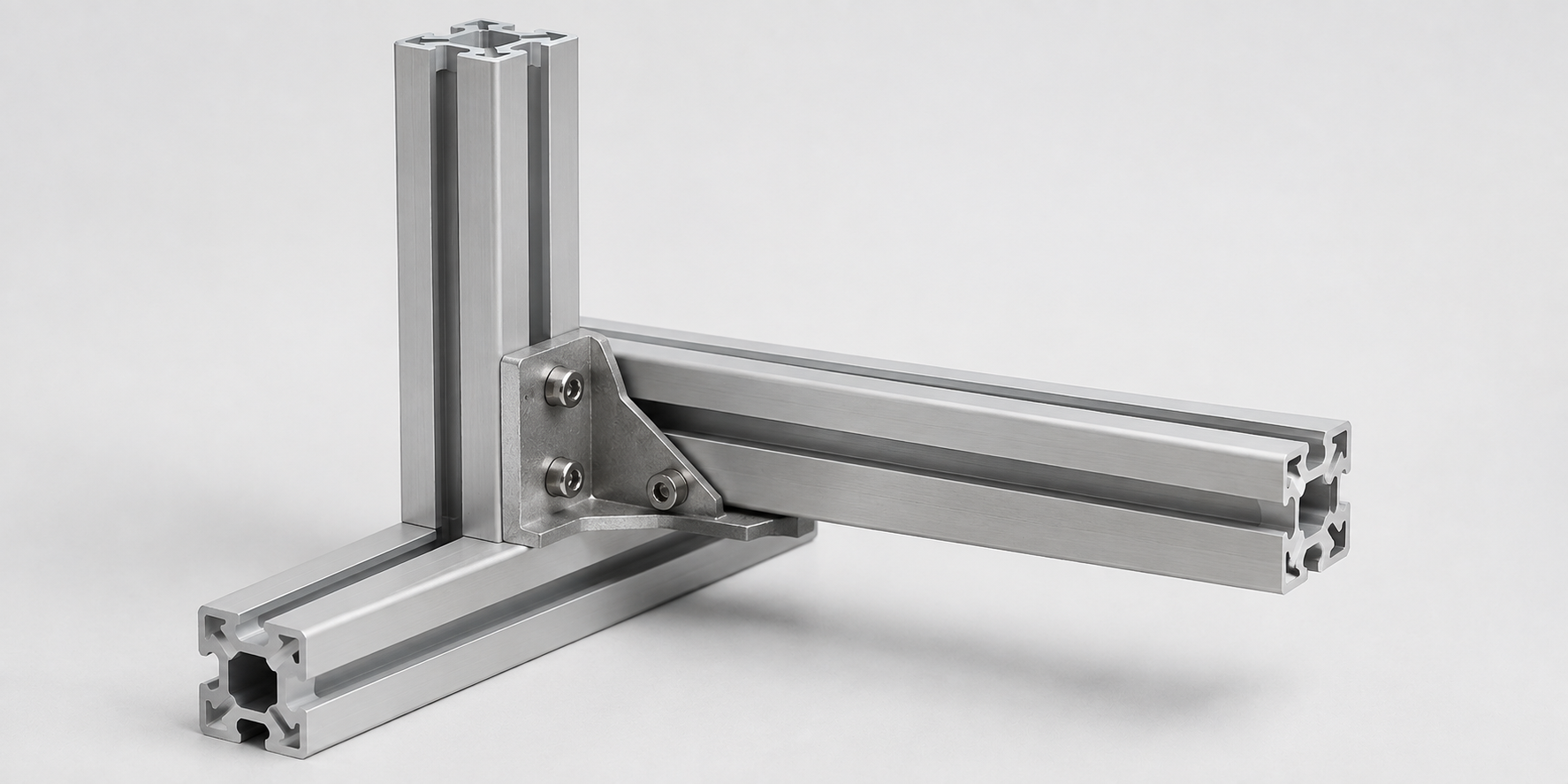

Modular
IS 1285Modular profiles
Slotted modular profiles for framing, workstations, and machine guarding: assembled without welding using standard fasteners and brackets.
Three grades.
Architectural to structural.
Window systems, curtain wall, fascia, shopfront, solar racking, architectural trim.
Load-bearing structures, beams, columns, racking, transport, marine.
Precision engineering, aerospace sub-structure, CNC machining stock, automotive.
IS 733 · IS 1285.
CE for export.
Banco's standard section range is manufactured and supplied to the Bureau of Indian Standards specifications IS 733 (aluminium alloy wrought products: bars, rods, and sections) and IS 1285 (wrought aluminium and aluminium alloys: extruded sections). Material test certificates conforming to EN 10204 Type 3.1 are available for all stock items.
For export orders to the European Union, a CE Declaration of Performance under EN 15088 (aluminium structures: technical conditions for inspection and delivery) can be issued for structural section grades. This is required for load-bearing applications in CE-marked structures.
Standard section
doesn't fit? We'll
design the die.
If no standard section matches your application, Banco's in-house die shop will design and manufacture a custom die, typically within 2–3 weeks. Custom profiles are extruded, heat treated, and finished to the same specification and quality standard as standard sections.
Submit a DXF or PDF drawing with critical dimensions indicated. The die shop team will review for extrudability, propose any necessary modifications, and return a tooling quotation and lead time within 3 working days.
